Performance of big data problems II

Open-source frameworks for large scale data processing

Authors

Affiliation

Matt Graham

Centre for Advanced Research Computing

Anastasis Georgoulas

Introduction

This lecture will talk about three open-source frameworks for large scale data processing:

Apache Hadoop,
Apache Spark,
Dask.

All three allow users to take advantage of distributed architectures for data processing.

Learning outcomes

Describe the key features of Hadoop, Spark and Dask.
Recognize the advantages of using distributed file systems for data processing.
Use pyspark to programmatically access Spark’s capabilities.
Explain why we would want to perform stream data processing.
Compare Spark and Dask’s differences and similarities.

Hadoop

Hadoop is a framework with several components.

We will focus on two of them:

The Hadoop Distributed File System (HDFS).
An implementation of MapReduce.

Together, these two elements let users distribute data processing across many nodes without having to worry (too much) about how files are structured or how computation is performed.

Distributed file systems

Distributed file systems store files across many storage nodes.

Instead of a single copy, each file resides in multiple copies across different parts of the system.

Data locality - processing tasks can locally access data they need.
Consistency ensured through synchronization.
Scalable by adding more nodes.
Resistant to failure.
Transparency - the user should not need to know the details of how the file system works.

Hadoop MapReduce

To write a MapReduce application in Hadoop, a user must:

Specify the mapper (how should a small chunk of data be processed?).
Specify the reducer (how should the mapper results be combined?).
Get the data onto HDFS (the cluster nodes).
Launch the job by pointing to the data, mapper and reducer.

Hadoop is Java based but it is possible to specify the mapper and reducer in other languages using the Hadoop Streaming interface - for example in Python.

Once these components are specified and a job is launched, Hadoop takes care of the rest, including the communication between the different stages and determining on which nodes processing occurs.

This can be powerful for handling large volumes of data relatively simply.

While powerful, Hadoop MapReduce is mainly appropriate for large batch processing tasks.

Hadoop MapReduce data flow

The MapReduce model enforces a linear data flow structure:

data chunks are read from disk in the HDFS,
the mapper processes the data chunks,
the reducer combines the mapper outputs,
the results are written back to disk in the HDFS.

This restriction makes Hadoop MapReduce less efficient for iterative algorithms and interactive data exploration, due to the high overhead of repeatedly reading and writing to disk.

Spark

Apache Spark is a framework for processing large amounts of data in memory.

It supports more general workflows than Hadoop MapReduce, and by avoiding writing to disk unless needed, allows more efficient iteration and data exploration.

It can run on top of Hadoop and take advantage of HDFS.

Spark features

Basic features of Spark:

Lazy: does not perform computations until required.
In-memory processing: faster than using disk storage.
Resilience: steps used to produce data tracked to allow reconstruction.
Streams: can handle data in real time as it arrives (“online”).

Spark SQL and datasets

Spark comes with interfaces in a few languages, including Python (pyspark).

These offer programmatic access to its various capabilities.

Spark SQL is a component for structured data processing with support for executing SQL queries.

The key abstractions in Spark SQL are Datasets and DataFrames - pyspark only supports DataFrames.

These both represent collections of items that may be distributed over multiple nodes.

Example: `pyspark` pandas

DataFrames can be created by specifying the values directly, or by reading from and transforming an existing source (including a Pandas DataFrame).

import pyspark.pandas as ps

dataframe = ps.DataFrame({"x": [1, 2.1, 3.5],  "y": [2, 4.2, 7]})
dataframe

WARNING: Using incubator modules: jdk.incubator.vector
Using Spark's default log4j profile: org/apache/spark/log4j2-defaults.properties
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
26/03/13 14:58:41 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
[Stage 0:>                                                          (0 + 1) / 1][Stage 0:===========================================================(1 + 0) / 1]

	x	y
0	1.0	2.0
1	2.1	4.2
2	3.5	7.0

Spark DataFrames can also be handled like pandas DataFrames:

dataframe["z"] = dataframe["x"] * dataframe["y"]
dataframe

	x	y	z
0	1.0	2.0	2.00
1	2.1	4.2	8.82
2	3.5	7.0	24.50

This allows using Spark’s distributed processing functionality without major changes from code that originally used pandas.

The distributed nature of the data is transparent.

MLlib

Spark includes an extensive Machine Learning library (MLlib), with support for

classification,
regression,
clustering,
reading from different file types,
data pipelines.

Using Spark’s MLlib allows taking advantage of distributed processing more easily than for example scikit-learn.

Example: `MLlib` logistic regression

To allow us to demonstrate fitting a logistic regression model with MLlib, we first download an example data file and save it in a local temporary file:

import urllib.request
import tempfile

response = urllib.request.urlopen(
    "https://raw.githubusercontent.com/apache/spark/"
    "master/data/mllib/sample_libsvm_data.txt"
)
data_temp_file = tempfile.NamedTemporaryFile()
with open(data_temp_file.name, "wb") as f:
    contents = response.read()
    f.write(contents)

We now train a logistic regression model and print the fitted parameters (adapted from the Spark documentation):

from pyspark.sql import SparkSession
from pyspark.ml.classification import LogisticRegression

spark = SparkSession.builder.getOrCreate()
data = spark.read.format("libsvm").load(data_temp_file.name , numFeatures=692)
model = LogisticRegression(maxIter=10, regParam=0.3, elasticNetParam=0.8)
model = model.fit(data)
print(f"Coefficients = {repr(model.coefficients)}\n")
print(f"Intercept = {model.intercept}")

Coefficients = SparseVector(692, {272: -0.0001, 300: -0.0001, 323: 0.0, 350: 0.0004, 351: 0.0003, 378: 0.0006, 379: 0.0004, 405: 0.0004, 406: 0.0008, 407: 0.0005, 428: -0.0, 433: 0.0006, 434: 0.0009, 435: 0.0001, 455: -0.0, 456: -0.0, 461: 0.0005, 462: 0.0008, 483: -0.0001, 484: -0.0, 489: 0.0005, 490: 0.0005, 496: -0.0, 511: -0.0003, 512: -0.0001, 517: 0.0005, 539: -0.0001, 540: -0.0004, 568: -0.0001})

Intercept = -0.5991460286401438

Spark Streaming

In many cases, it is not possible to access all the data at once, due to size or availability.

Spark Streaming allows processing data points as they arrive.

Image Credit: Apache Spark documentation

It does this by creating small batches of data, calculating processed results, and updating those as more data arrives.

Can incorporate real-time data.
Can be more efficient when loading large datasets or from sources with high latency.
Algorithm and program structure may need to be adapted, but Spark provides features for “hiding” that.
MLlib contains implementations for fitting on streaming training data, or making predictions on streaming test data.

Dask

Dask is a Python library for parallel and distributing computing.

Dask shares similarities with Apache Spark in using a lazy evaluation model, providing a pandas-like DataFrame interface and supporting streaming computation.

Unlike Spark, Dask is written in and primarily used within Python, and is tightly integrated with other packages in the wider Python ecosystem.

Dask does not support SQL but equivalent operation can be performed using its Python interface.

Dask task scheduling

Dask supports a generic task-scheduling paradigm that can make it more flexible than alternatives such as Spark

A graph of the tasks corresponding to a computation is built and can be then be executed on a variety of schedulers working on both single-machines and clusters.

Example: Dask timeseries analysis

As a simple example, we construct a simulated timeseries DataFrame in Dask using the dask.dataset.timeseries function

import dask

dataframe = dask.datasets.timeseries(
  start="2000-01-01", end="2000-01-29", seed=1234, partition_freq="7d"
)

The generated DataFrame here is relatively large:

print("Number of records: ", dataframe.size.compute())

Number of records:  9676800

Importantly Dask data structures are partitioned to allow distributing computations on chunks of the data.

dataframe

Dask DataFrame Structure:

	name	id	x	y
npartitions=4
2000-01-01	string	int64	float64	float64
2000-01-08	...	...	...	...
2000-01-15	...	...	...	...
2000-01-22	...	...	...	...
2000-01-29	...	...	...	...

Dask Name: to_string_dtype, 2 expressions

As with pandas DataFrame objects we can use the head method to inspect the first few rows

dataframe.head()

	name	id	x	y
timestamp
2000-01-01 00:00:00	Kevin	1048	0.103616	0.808130
2000-01-01 00:00:01	Edith	1031	-0.766785	0.041413
2000-01-01 00:00:02	Wendy	992	0.737473	0.269862
2000-01-01 00:00:03	Victor	964	-0.615337	-0.848031
2000-01-01 00:00:04	Hannah	1013	0.341761	0.477595

Dask DataFrames provide a pandas like interface which we can use to perform filtering, grouping and aggregation operations.

filtered = dataframe[dataframe.x > 0]
grouped = filtered.groupby("name")
results = grouped["x", "y"].std()
results

Dask DataFrame Structure:

	x	y
npartitions=1
	float64	float64
	...	...

Dask Name: std, 7 expressions

Unlike pandas where operations are evaluated eagerly, operations in Dask are evaluated lazily with an expression graph being built representing the applied operations.

We can visualize the expression graph associated with a Dask DataFrame using the visualize method

results.visualize(rankdir="TD")

We can also optimize the expression graph, for example fusing operations

optimized = results.optimize()
optimized.visualize(rankdir="TD")

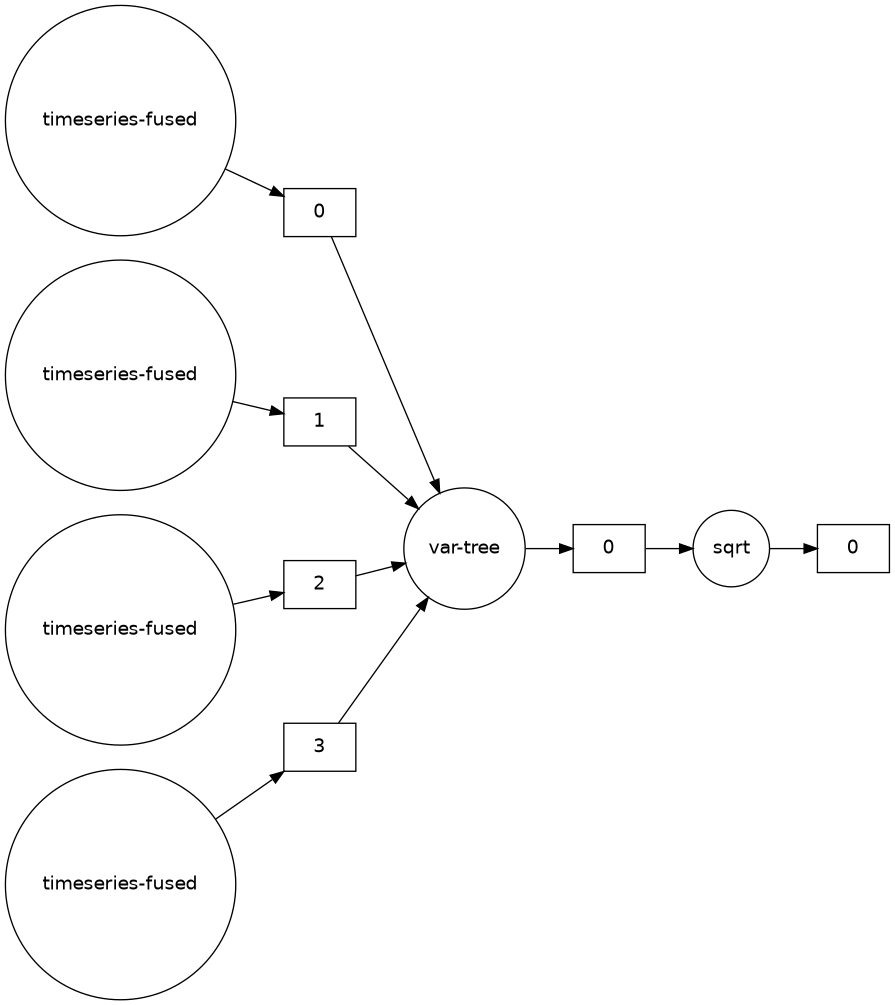

We can also instead visualize the constructed task graph

optimized.visualize(tasks=True, rankdir="LR")

Calling the compute method on a Dask DataFrame will schedule the attached task graph, and output a pandas DataFrame

optimized.compute().head()

	x	y
name
Alice	0.288051	0.577736
Bob	0.289142	0.577752
Charlie	0.288792	0.576825
Dan	0.288814	0.575794
Edith	0.289188	0.577416

Dask defaults to a threaded scheduler to run computations, but distributed schedulers can be used instead.

Summary

Using frameworks makes it much easier to build applications with distributed data processing.
Hadoop and Spark are complementary: Hadoop provides more basic functionality, while Spark can run standalone and is better for data that fits in memory.
Dask is a modern Python based alternative to Spark for distributed data processing that offers a very general task scheduling framework.
